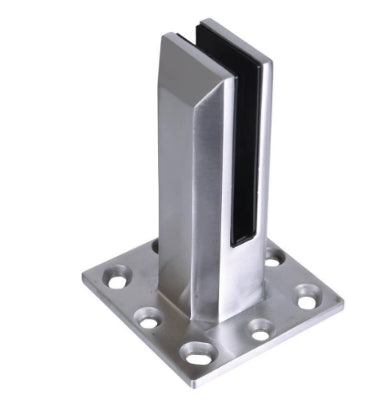

Square Base MAGESTIC Mini Post Spigot for 12mm Glass

This MAGESTIC range of Mini Post Spigot are used to secure glass panels in frameless glass balustrades, pool fences, and other architectural applications. These spigots are designed to hold 12mm toughened glass securely without the need for holes in the glass, making installation quick and easy.

This is a 0.36kN tested design and is for top fix use and for use with 12mm thick glass. This system uses a pressure plate fix to secure the glass in place. Designed to be used for low level domestic uses installations such as on decking, patio and garden level installs. Uses exclude external balconies and installs at height such as edges of roof terraces.

These are supplied as standard in a satin / brushed polished finish with a black powder coated stock version available.

Key features of Mini Post Spigots include:

• Material: Made from high-quality stainless steel grade 2205 Duplex stainless steel, which offers excellent corrosion resistance.

• Finish and Colour: These come in either a Satin Brushed Polished or Black Powder Coated finish.

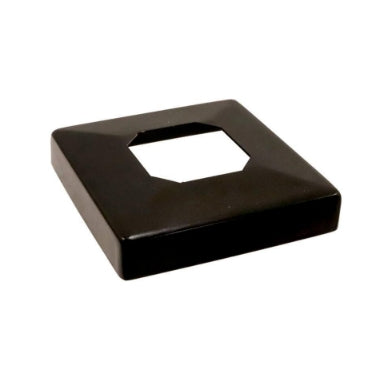

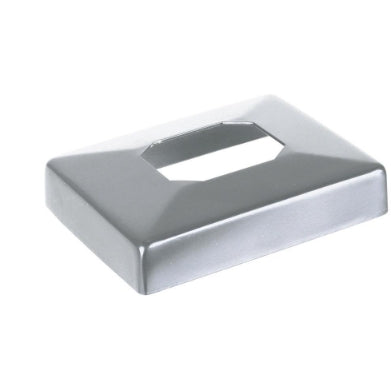

• Base Cover: included as part of the set.

• Design: square base design with a pressure plate fixing system for low level domestic use with low load capacity requirements.

• Glass Thickness: Only suitable for use with 12mm thick glass.

• Height of Glass: The glass site at the bottom of the spigot creating a gap of 53mm under the glass.

• Load Requirements: When used with the appropriate glass specifications and design these Mini Post meet building regulations Horizontal UDL loadings of 0.36kN/m for low level railing.

• Installation: Easy to install with minimal tools, featuring a basic pressure plate system that secures the glass with adjustment of grub screws using an Allen key.

These Mini Post spigots provide a sleek, modern look while ensuring the glass panels are securely fixed in place, making them a popular choice for ground level installs in a residential environment.
