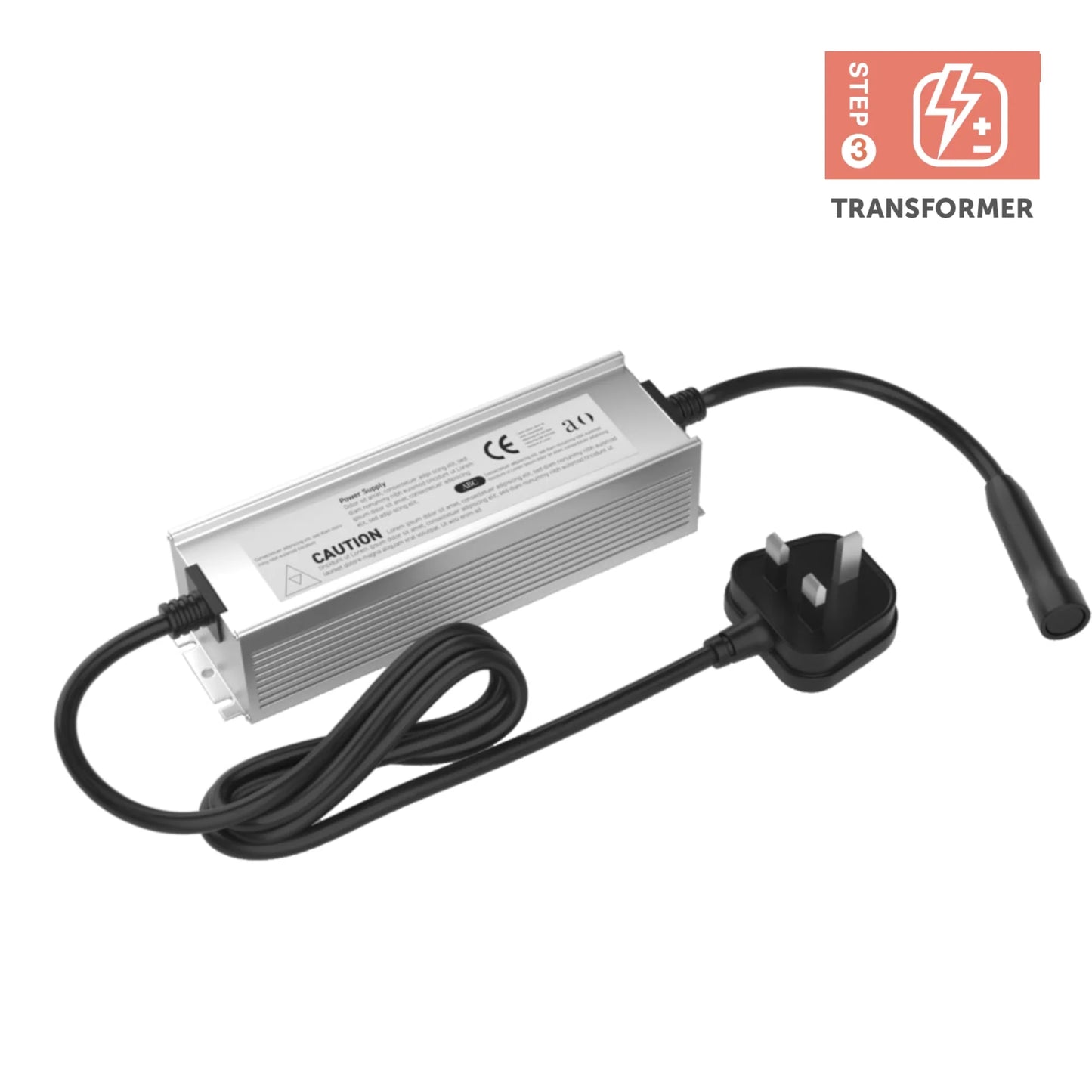

Ellumiere Outdoor Transformer 100W

• Power 100W / 8330mA
• Output DC12v
• Input 240v
• Aluminium Housing
• Compatible with Deck light, Bollard Lights and Spot lights
• Maximum 18 lights per transformer

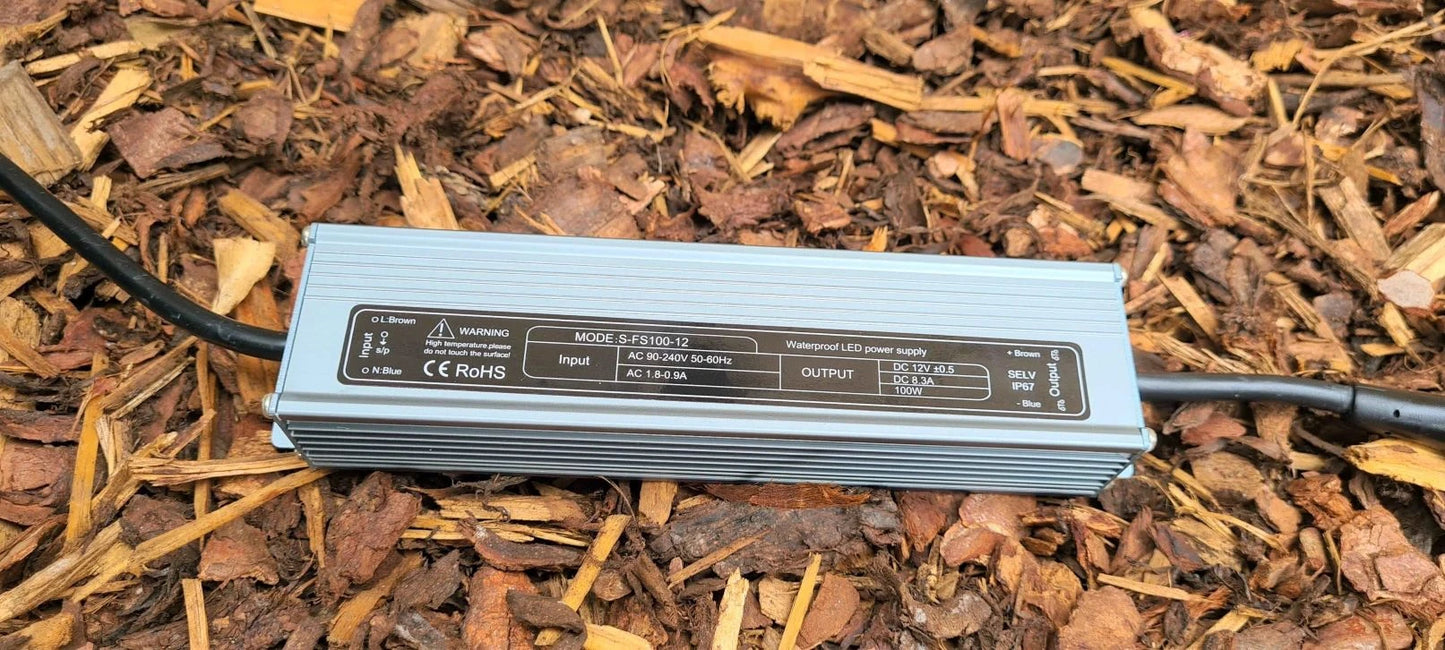

Aluminium Casing

Do I need an electrician to install this lighting system?

No, simply plug the transformer into a waterproof socket and this will convert 240V to 12V giving you a safe, easy and reliable mains powered LED lighting system

What is an IP Rating?

IP (or Ingress Protection) ratings are defined in international standard EN 60529 (British BS EN 60529:1992, European IEC 60509:1989). They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture.

What is the total length of cabling that can be used?

Check the total length of all your cables does not exceed 50m.

How many lights can I use per transformer?

The maximum number of lights, per transformer, is 18. Any configuration of lights can be used (bollards, spotlights, deck lights)

Can I customise my lights?

Yes, you can customise your lights through different coloured lenses
What is a Kelvin Rating?

The Kelvin Rating (K) refers to the colour of the bulb’s light. The higher the K rating, the whiter the light will be

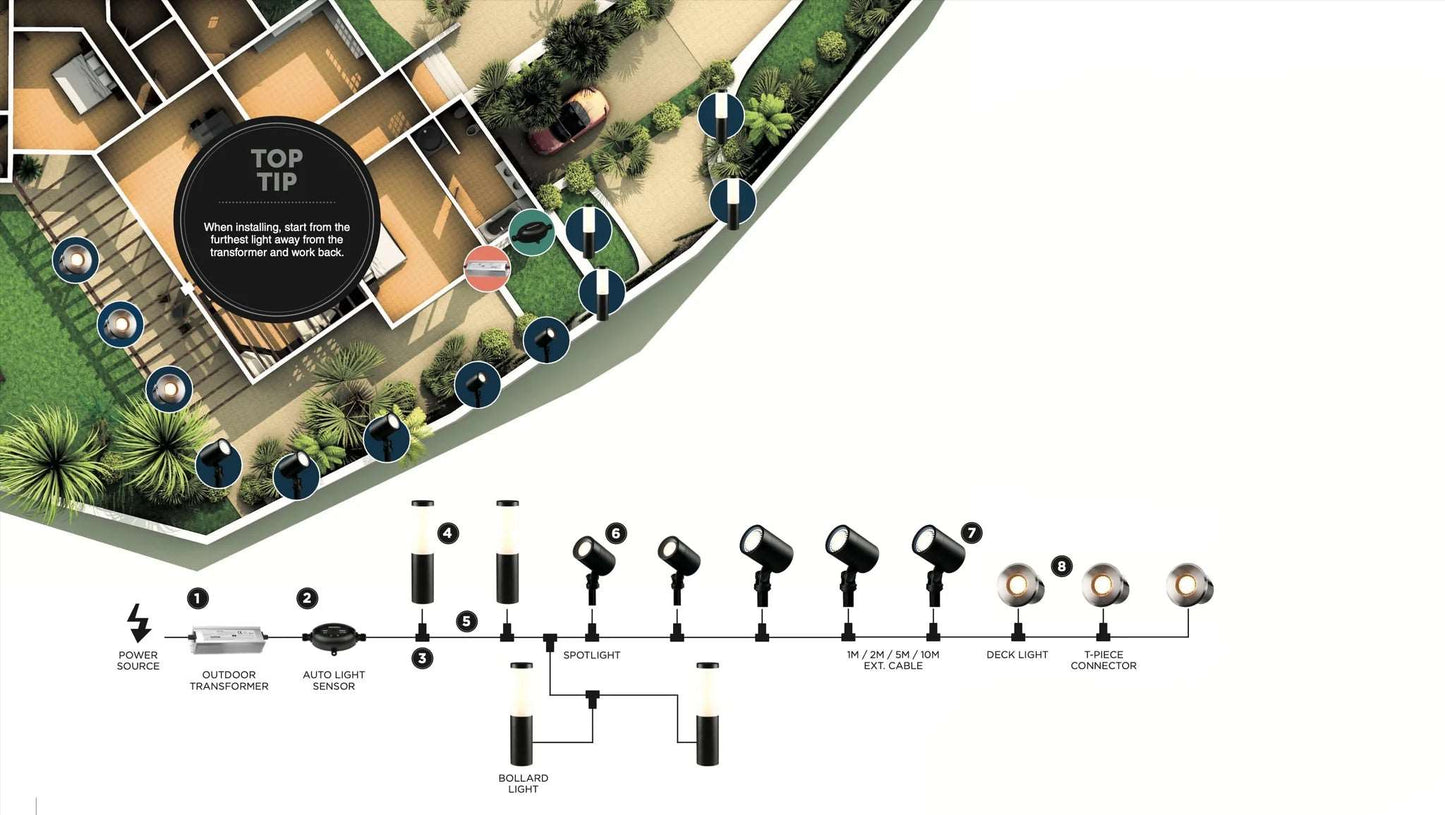

How many T-Piece

Adaptors do I need?

One adapter is needed per light (apart from the last one). So if you install 6 lights, you need 5 x T-Piece Adaptors
